Aluminium Panels

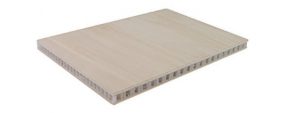

2024-T3 CLAD Skin / 5052 Alum. Core – Aerospace Grade Aluminum Panel

Skins 0.020” 2024-T3 CLAD
Core 5052 Alum. 1/4” Cell Size, 3.4 lbs/ft³
Adhesive High Peel, Flame Retardant, Toughened Epoxy Film
Adhesive compliance with MMM-A-132 Type 1 Class
2, MIL-A-25463 Type 1 Class 2 as well as FAR 25.853.
Standard Dimensional Length & Width: ±0.500”
Tolerances Thickness: ±0.010”
Panel Dimension 48” x 96” (up to 60” x 144”)



Panel Part # Panel Thickness Panel Weight Core Sheet Thickness
inches lbs/sf Inches
ACM-0125-A111-A5003 0.125 0.69 0.085
ACM-0250-A111-A5003 0.250 0.72 0.210
ACM-0500-A111-A5003 0.500 0.79 0.460
ACM-0750-A111-A5003 0.750 0.86 0.710
ACM-01000-A111-A5003 1.000 0.93 0.960



Aluminum Skin / Aluminum Core – Commercial Aluminum Panel

Skins 0.032” 5052-H32
Core 3003 Alum. 3/8” Cell Size, 3.6 lbs/ft³
Adhesive High Peel, Flame Retardant, Toughened Epoxy Film Adhesive compliance with MMM-A-132 Type 1
Class 2, MIL-A-25463 Type 1 Class 2 as well as FAR 25.853.
Standard Dimensional Length & Width: ±0.500”
Tolerances Thickness: ±0.020”
Panel Dimension 48” x 96” (up to 48” x 144”)



Panel Part # Panel Thickness Panel Weight Core Sheet Thickness
inches lbs/sf Inches
ACM-0125-A124-A5019 0.125 0.84 0.061
ACM-0250-A124-A5019 0.250 0.88 0.186
ACM-0500-A124-A5019 0.500 0.95 0.436
ACM-0750-A124-A5019 0.750 1.03 0.686
v 1.000 1.10 0.936
